Zabbix Proxy Groups: High Availability and Load Balancing

Zabbix Proxy Groups provide a robust foundation for enterprise-grade distributed monitoring, enabling automatic High Availability (HA) and Load Balancing (LB) across multiple proxies. Instead of binding a monitored host to a single proxy, the host is assigned to a Proxy Group. The Zabbix server then determines dynamically and continuously which proxy within the group is responsible for monitoring that host.

This approach ensures uninterrupted monitoring during proxy failures and maintains an even workload across the proxy infrastructure.

Overview and Core Concepts

Proxy groups operate under the control of the Zabbix Server’s Proxy Group Manager, which continuously evaluates proxy status, host assignments, and overall group health. Two major capabilities define this feature: automatic failover and workload balancing.

1. High Availability (HA) Through Automatic Failover

Failover Mechanism: If a proxy stops communicating with the Zabbix server and exceeds the configured Failover period, it is marked Offline. The Proxy Group Manager then immediately reassigns all hosts monitored by that proxy to the remaining online proxies in the group.

Outcome: Monitoring continues with minimal disruption and without manual intervention.

2. Load Balancing Through Host Redistribution

Balancing Mechanism: The Zabbix server evaluates the number of hosts assigned to each proxy. # Proxy groups

Zabbix Proxy Groups: High Availability and Load Balancing

Zabbix Proxy Groups provide a robust foundation for enterprise-grade distributed monitoring, enabling automatic High Availability (HA) and Load Balancing (LB) across multiple proxies. Instead of binding a monitored host to a single proxy, the host is assigned to a Proxy Group. The Zabbix server then determines dynamically and continuously which proxy within the group is responsible for monitoring that host.

This approach ensures uninterrupted monitoring during proxy failures and maintains an even workload across the proxy infrastructure.

Overview and Core Concepts

Proxy groups operate under the control of the Zabbix Server’s Proxy Group Manager,Load balancing is triggered if an imbalance is detected, defined by two simultaneous conditions:

1. A difference of greater than 10 hosts, and
2. The number of hosts assigned to a proxy is double the group average or more.

Redistribution Logic:

1. Compute the average hosts per proxy.
2. Proxies with excess hosts move them into an unassigned pool.
3. Proxies with a deficit receive hosts from this pool.

Example:

Advanced Operational Detail

The following technical details govern the behavior of the Proxy Group Manager and agents.

Internal Management and Communication

Load Balancing Time Window

• If a proxy group is flagged as unbalanced, the Proxy Group Manager will wait until the grace period of $10 \times$ the failover delay has expired.
• This grace period prevents redistribution based on temporary spikes. If the imbalance persists, host redistribution is performed.

Agent Configuration Rules

Passive Agents (Server=)

A Zabbix agent in passive mode must accept connections from all members of its proxy group. * Configure the Server parameter with a comma-separated list of all node IP addresses or DNS names. * It is also possible to specify entire network segments if appropriate.

Active Agents (ServerActive=)

The active agent (v7.0+) will dynamically learn the optimal proxy. It is configured in one of two ways:

1. Specify Multiple Proxies: Specify multiple proxy addresses using semicolons. Any proxy group member the agent connects to can redirect the agent to the currently assigned proxy.
2. Specify Zabbix Server: Specify the Zabbix server address instead of the proxy addresses. The Proxy Group Manager will redirect the agent to the assigned proxy. The active agent will then add all known proxies to its runtime ServerActive parameter.

Handling Proxy Network Loss

• If a proxy loses its network connection to the Zabbix server, the Proxy Group Manager will automatically reassign the proxy's hosts to other online proxies.
• The disconnected proxy will mark itself as offline and will redirect any active agents attempting to connect to it toward the other proxies in the group.

Configuration Workflow

Deploying proxy groups effectively involves three main steps.

Step 1: Create the Proxy Group

In the Zabbix frontend:

1. Navigate to Administration → Proxy groups.
2. Click Create proxy group.

Step 2: Assign Hosts to the Proxy Group

Hosts must be explicitly assigned to the proxy group:

1. Select hosts in Hosts.
2. Use Mass Update.
3. Set Monitored by proxy = <Proxy Group Name>.

Only hosts assigned to the group are eligible for automated failover and load balancing.

Architecture Diagram

flowchart LR
    subgraph Server["Zabbix Server"]
        PGM["Proxy Group Manager"]
    end

    subgraph ProxyGroup["Proxy Group"]
        PX1["Proxy 1"]
        PX2["Proxy 2"]
        PX3["Proxy 3"]
    end

    subgraph Hosts["Monitored Hosts"]
        H1["Host A"]
        H2["Host B"]
        H3["Host C"]
        H4["Host D"]
    end

    PGM --> PX1
    PGM --> PX2
    PGM --> PX3

    PX1 <---> H1
    PX2 <---> H2
    PX3 <---> H3
    PX2 <---> H4

    %% Failover arrows
    PX1 -.Failover/Load Balancing.-> PX2
    PX2 -.Failover/Load Balancing.-> PX3

Important Considerations and Limitations

• Version Requirements: All proxies must run Zabbix 7.0 or later and match the server version.
• Firewall Requirements: Agents must be able to communicate with every proxy in the group.
• SNMP Traps Not Supported: Proxy groups cannot process SNMP traps. Traps must be routed to a dedicated, non-grouped proxy.
• External Dependencies Must Be Identical: If proxies use external check scripts, ODBC configuration, or third-party integrations, ensure all proxies have identical configurations.
• VMware Monitoring Impact: VMware hypervisors may be distributed across proxies, and each proxy will retrieve cached data from vCenter, increasing load.

Some Good Practices

• Use at least three proxies for stable HA and load balancing.
• Ensure symmetric configuration across all proxies (scripts, credentials, ODBC drivers, time sync).
• Monitor proxy performance using built-in templates to understand load and redistribution frequency.
• Keep failover periods short for high-criticality environments.
• Test failover events regularly in non-production environments.

Practical Example

This example utilizes a single Zabbix Server and a three node Proxy Group to provide superior High Availability (HA) and load balancing for a large remote location. This configuration allows for failure tolerance and demonstrates mixed Active/Passive monitoring modes.

You don't need multiple virtual machines but of course we won't stop you if you want too. :) An easy alternative is containers. Or running proxies with different configuration files manually from the command line with the option -c or --config-file. If you don't know how have a look at our previous chapter Running proxies as containers.

Environment Overview

Zabbix Proxy Configuration File (zabbix_proxy.conf)

The IPs are just examples, adapt them to your own setup.

Zabbix Frontend Setup (Administration)

Follow these steps in the Zabbix Web Interface (Administration section) to create and assign the Proxy Group.

Define Individual Proxies (Administration -> Proxies)

• Navigate to Administration-> Proxies.
• Click Create proxy.
• Define all three proxies one by one:
  • Proxy name: Enter the Hostname (e.g., zbx-proxy-A1).
  • Proxy mode: Select Active (1) for A1 and A2, and Passive (0) for A3.
  • Proxy group: Leave as None for now.
• Click Add.

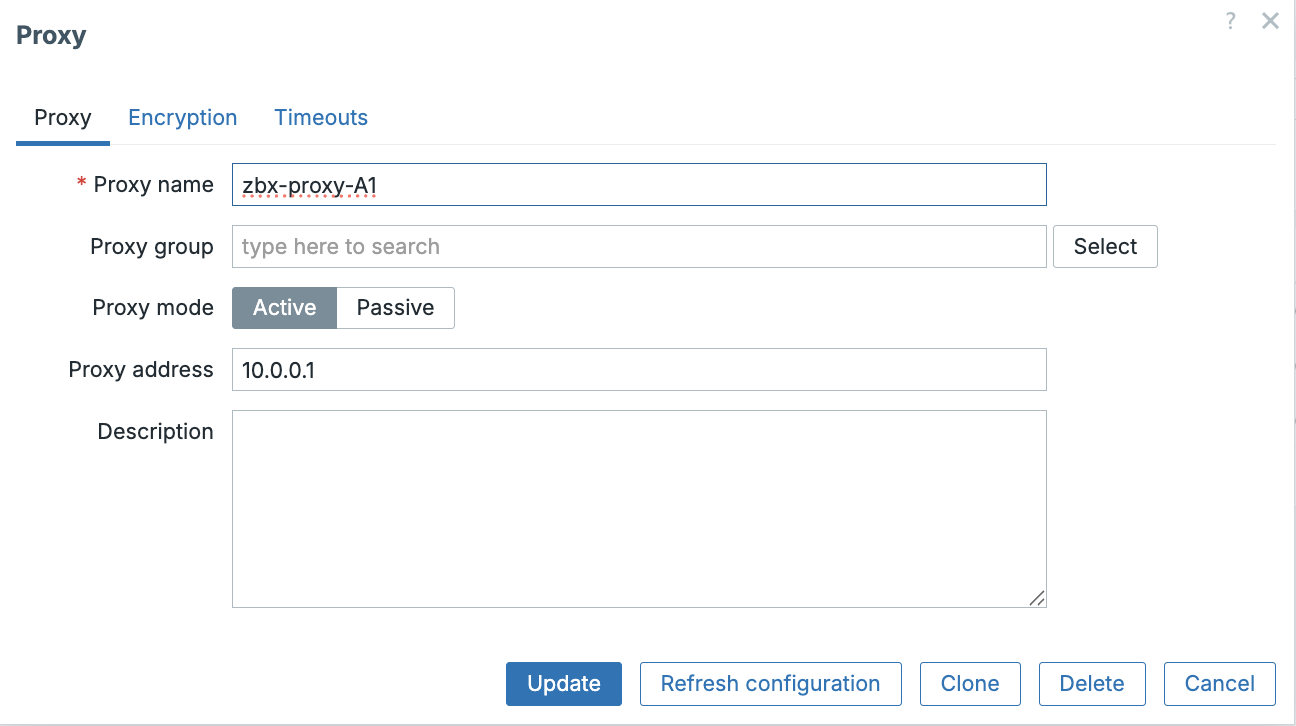

ch03 Add proxy

Create the Proxy Group (Administration -> Proxy groups)

• Navigate to Administration-> Proxy groups.
• Click Create proxy group.
• Configure the group parameters for High Availability:
  • Name: Branch-A_HA_Group
  • Minimum proxies: Set to 2. This ensures if only one proxy remains, the group will enter a Degrading state, preventing the single remaining proxy from being overloaded.
  • Failover period: 1m (The time the server waits before redistributing hosts from an offline proxy).

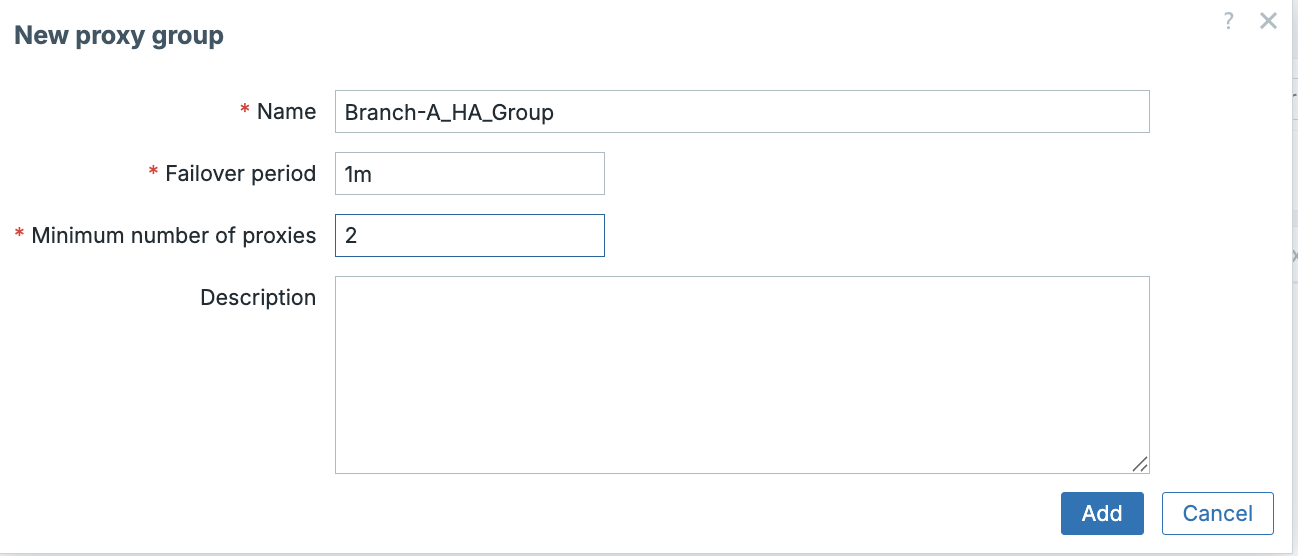

ch03 Create Proxy groups

Assign Proxies to the Group (Administration -> Proxies)

• Go back to Administration ->Proxies`.
• Edit each proxy (zbx-proxy-A1, zbx-proxy-A2, and zbx-proxy-A3).
• Change the Proxy group dropdown from None to Branch-A_HA_Group.
• Define Address for active agents add the IP of the proxy.
• Click Update.

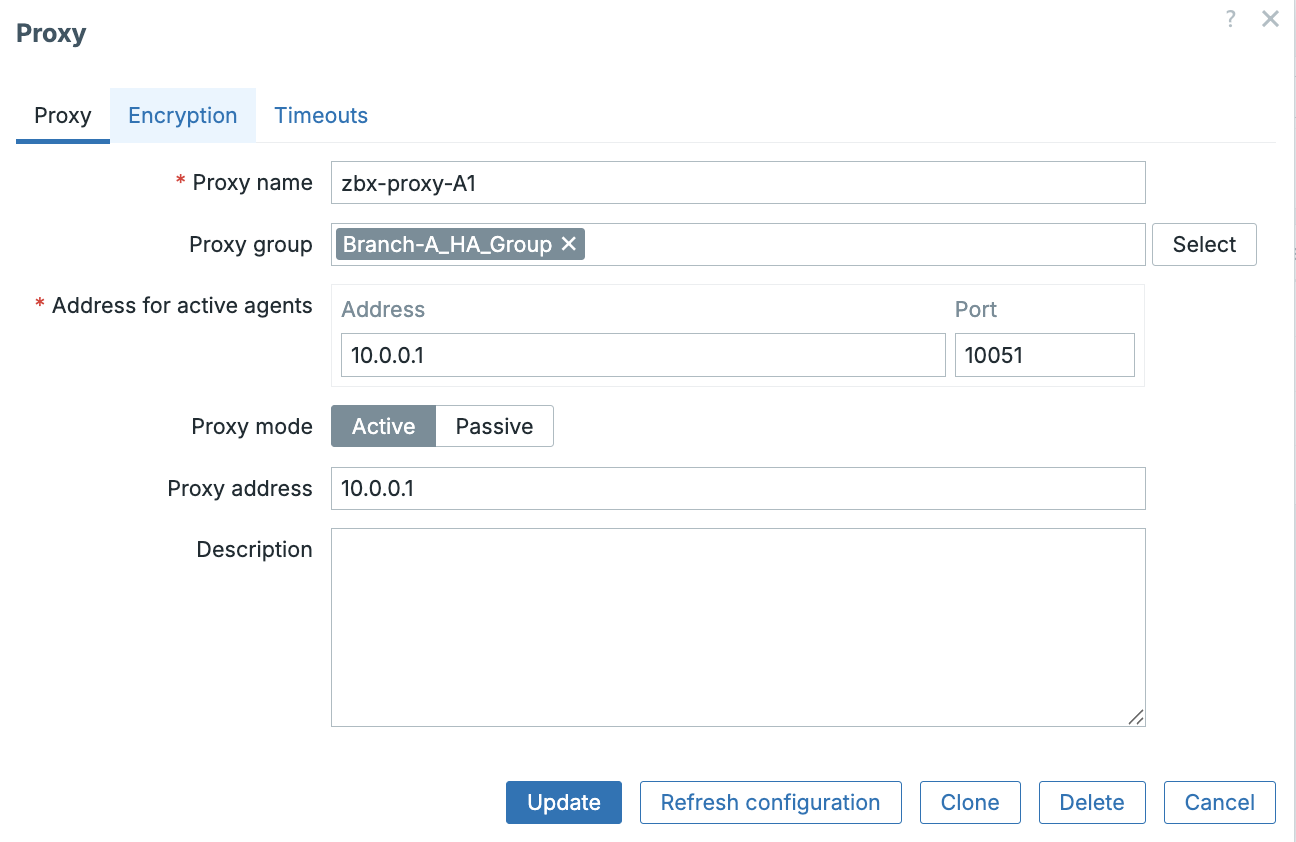

ch03 Add proxy to proxy group

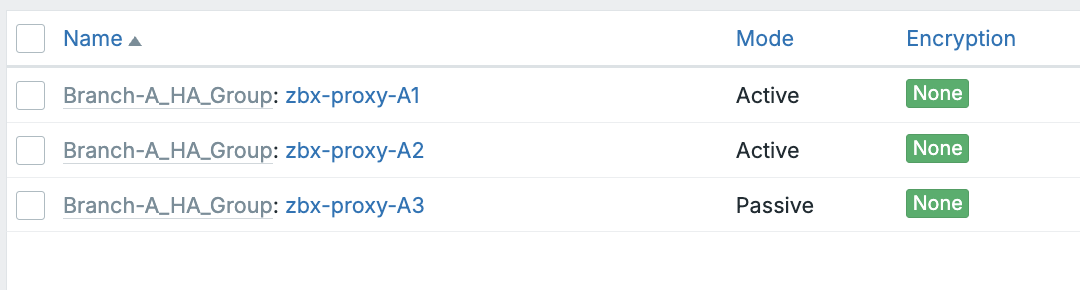

ch03 All proxies linked with a proxy group

Zabbix Agent Configuration (zabbix_agentd.conf)

To ensure hosts can be monitored by any proxy in the group, the Zabbix Agent configuration on the 300 hosts must be aware of all proxy IP addresses. Don't worry we will not install 300 hosts. Just one agent is fine, we will use a passive agent and just create 300 dummy agents in the frontend.

As a final step you now have to create 300 hosts in the frontend and select Monitored by proxy field to the proxy group : Branch-A_HA_Group.

Just here is a script for you that will handle those things. Just create an API token for the Zabbix Administrator account or any account with enough privileges and fill in the API token and the URL of the zabbix frontend. Make the script executable chmod +x create_hosts.py or whatever you used as name for the script. Verify also the Host_group_id, Template_id and the Proxy_group_id. This can be done by looking at the URL when clicking on them.

#!/bin/python3
import requests
import json
import random

# --- Configuration ---
ZABBIX_URL = "http://<Server URL>/api_jsonrpc.php"
AUTH_TOKEN = "<API TOKEN>"  # Replace with your Zabbix API token
HOST_COUNT = 300
HOST_GROUP_ID = "2"  # Replace with the actual ID of your target Host Group (e.g., 'Branch A Servers')
TEMPLATE_ID = "10561" # Replace with a common template ID (e.g., 'Template Module Zabbix agent')
PROXY_GROUP_ID = "1" # Replace with the actual ID of your 'Branch-A_HA_Group'

def api_call(method, params, id_val=1):
    """
    Generic function to make a Zabbix API call for 7.2+.
    - Token is passed via Authorization: Bearer header.
    - 'auth' is NOT included in the JSON body anymore.
    """
    headers = {
        "Content-Type": "application/json-rpc",
        "Authorization": f"Bearer {AUTH_TOKEN}",
    }

    payload = {
        "jsonrpc": "2.0",
        "method": method,
        "params": params,
        "id": id_val
    }

    try:
        # using json= lets requests handle encoding
        response = requests.post(ZABBIX_URL, json=payload, headers=headers, timeout=10)
        response.raise_for_status()
        return response.json()
    except requests.exceptions.RequestException as e:
        print(f"API Request Error on method {method}: {e}")
        return None

def create_hosts():
    """Creates the bulk hosts using the host.create API method."""
    print(f"Starting host creation for {HOST_COUNT} hosts...")

    # --- AUTHENTICATION CHECK ---
    auth_check_response = api_call(
        "user.get",
        {"output": ["username"]},
        id_val=1000
    )

    if auth_check_response and 'result' in auth_check_response:
        if auth_check_response['result']:
            user_alias = auth_check_response['result'][0]['username']
            print(f" Authenticated successfully as: {user_alias}")
        else:
            print(" Auth success, but no users returned. Check the token's permissions.")
            return
    elif auth_check_response and 'error' in auth_check_response:
        print(f" Initial Authentication Error. Received: {auth_check_response['error']['data']}")
        print("Please double-check your ZABBIX_URL and AUTH_TOKEN.")
        return
    else:
        print(" Failed to establish connection for authentication check. Check ZABBIX_URL.")
        return

    # --- END AUTHENTICATION CHECK ---

    hosts_created_count = 0
    for i in range(1, HOST_COUNT + 1):
        host_name = f"SIM-HOST-{i:03d}"

        params = {
            "host": host_name,
            "name": host_name,
            "groups": [{"groupid": HOST_GROUP_ID}],
            "templates": [{"templateid": TEMPLATE_ID}],

            # If you are using proxy groups in 7.x:
            "proxy_groupid": int(PROXY_GROUP_ID),
            "monitored_by": 2,

            "interfaces": [{
                "type": 1,  # Zabbix Agent interface
                "main": 1,
                "useip": 1,
                "ip": "127.0.0.1",
                "dns": "",
                "port": "10050"
            }],
            "status": 0  # enabled
        }

        response = api_call("host.create", params, id_val=i + 1)

        if response and 'result' in response:
            host_id = response['result']['hostids'][0]
            print(f"✅ Created host {host_name} (ID: {host_id})")
            hosts_created_count += 1
        elif response and 'error' in response:
            print(f" Error creating {host_name}: {response['error']['data']}")
            if "already exists" in response['error']['data']:
                break
        else:
            print(f" Unknown API error creating {host_name}.")
            break

    print(f"\n--- Script Finished ---")
    print(f"Total Hosts Created: {hosts_created_count}")

if __name__ == "__main__":
    create_hosts()

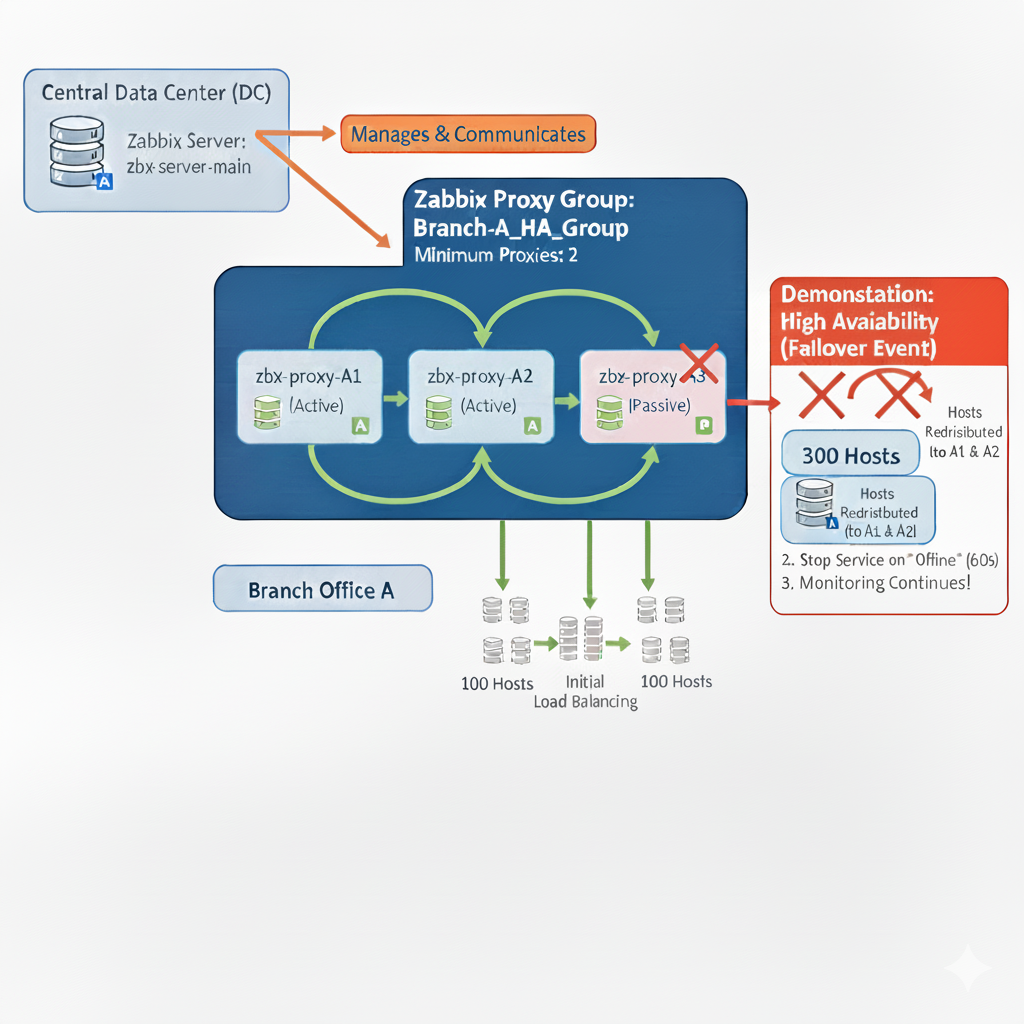

ch03 proxy groups

Troubleshooting Tips

Questions

1. What is the minimum Zabbix version required for both the proxy and agent to fully support Proxy Groups, including Active checks?
2. Describe the difference between the High Availability (HA) mechanism and the Load Balancing (LB) mechanism in Zabbix Proxy Groups. When does each occur?
3. What are the two specific conditions that must be met to trigger automatic host redistribution (Load Balancing) within a proxy group?
4. When configuring a Zabbix Agent for a host assigned to a proxy group, why must the ServerActive parameter list multiple proxy IPs or the Zabbix server IP?
5. What is the function of the Minimum number of proxies setting, and what happens when the number of online proxies drops below this value?
6. Why is it critical that external dependencies (like custom scripts or ODBC configurations) are identical across all proxies within the group?

Conclusion

Zabbix Proxy Groups significantly enhance the resilience and scalability of distributed monitoring environments. Through seamless failover and intelligent workload balancing, they allow enterprises to maintain consistent monitoring coverage even during proxy outages or uneven load distribution. When combined with proper agent configuration, firewall rules, and aligned proxy setups, proxy groups form a foundational component of modern Zabbix deployments.
